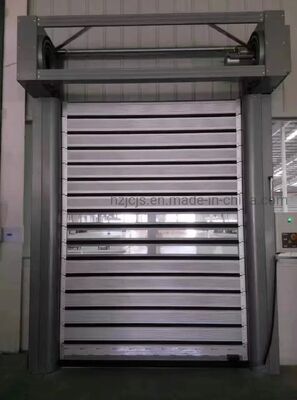

Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door

Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door
Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door

Hình ảnh lớn :  Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door

Thông tin chi tiết sản phẩm:
Chứng nhận: ISO9001, RoHS, CE
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: 1000
Tiếp xúc

Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door

Sự miêu tả
Mẫu số: tùy chỉnh Kiểu: Lăn
Phong cách mở: Lăn Kiểu mở: Với điều khiển từ xa
Chức năng đặc biệt: Chống cháy Màu sắc: màu sắc khác nhau
Chức vụ: Công nghiệp Hoàn thiện bề mặt: Hoàn thành
Nhiệt độ làm việc: -35 đến 65 độ C Lớp bảo vệ: IP55
Kích thước tối đa: Rộng 8000mm*Cao 8000mm Độ dày của rèm: 0.8-1,5 mm
Gói vận chuyển: Vỏ gỗ Đặc điểm kỹ thuật: JTM-D01, JTM-D02, JTM-D03, TM-D04, JTM-D05
Nhãn hiệu: JCJS HOẶC OEM Nguồn gốc: Trung Quốc
Mã HS: 85308000 Năng lực sản xuất: 50000 bộ / năm
Làm nổi bật:

Fire Proofing Roller Shutter Door

,

IP55 Protection High Speed Door

,

Customized Model Security Door

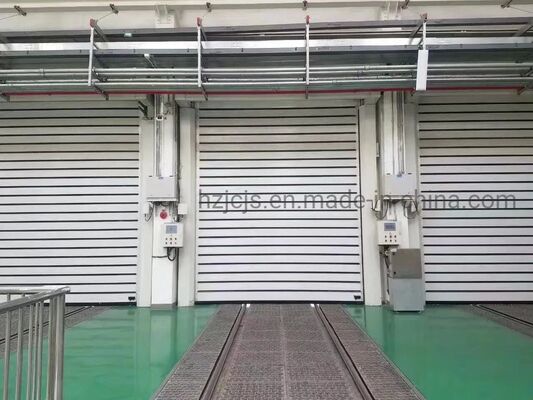

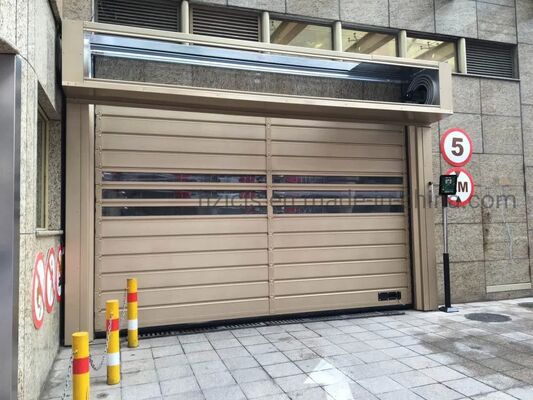

 Aluminum Alloy Metal door widely used in underground garages, automobile factories, food, chemicals, textiles,
electronics, supermarkets, refrigeration, logistics, warehousing and other places, can meet the requirements of
high-performance logistics and clean places.

Technical Data:
Opening Speed: 06m-2.0m/s (Adjustable)
Closing speed: 0.5m-1.5m/s (Adjustable)
Max dimension: 8000mm wide*8000mm high
Wind resistance: Beaufort scale 12 (35m/s)
Control system: Servo type
Driving system: Servo motor
 Motor Side Left/Right, Left and Right
Sound insulation factor: R=25dB
Power supply: 1-phase 220±10%V,50/60HZ,
or 3-phase 380V±10%V,50/60HZ
Available colors: Red,Grey,Orange,Champagne, Yelleow,White,Blue,Silver,Brown





Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door 0



Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door 1


Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door 2
Automatic High Speed Rolling Fire Proofing IP55 Protection Customized Model Roller Shutter Security Door 3






High Speed Door Beneficial:

1.Improve transport efficiency.

Especially for the traffic busy entrance ,the high speed door will great reduce the forklift or human waiting time ,great improve the transport efficiency ,thus improve the factory production efficient .

2.High level cleanness .
Our high speed door comply with GMP Standard ,easy to clean.
Great improve indoor environment cleanness ,inject the dust or insect into the workshop.
Widely used in the Printing and precision machinery industry, food or Pharmaceutical Industry,clean room ,and where there is high requirement of the cleanness .

3.Effective Insulation,super seal,Energy saving .
High speed opening and close and super seal will keep the indoor energy or cold air ,save the energy cost for the owner.Widely used for where there is temperature difference area.

4.Intelligent automation.
Standard operation : Two sides push button can meet the basic daily needs .
Additional operation way: Radar sensor ,Vehicle loop detector ,remote control ,pull switch will make the transport more convenient .
It can also be Connect with the production line ,Conveyor belt,VGA Vehicle and so on ,realize the automation intelligent work flow.

5..Excellent user safety performance.
Bottom soft wireless safety edge ,photos sensor ,Warning lamp are always the standard configuration.


6.Highly Customized.
We will according to the door application special customize the door for you.
Example :All 304 stainless steel structure for food or pharmaceutical industry ,Aluminum Alloy frame for the outside bad weather ,different color fit for your building environment ,etc.



FAQ

Q Why choose us ?

A:
      Most cost effective products (Best Bulk Price with stable quality.)
  1. Professional Technical sales support pre sale work also the after sale work.
  2. More than 20 years experience on the production and customization ,
  3. More than 10 years export experience ,reasonable shipment arrangement,and fast delivery ,save time is save money


Q How can we get start the first?

A. We only need your basic background information and the project site information.
If there are drawings to show your factory site plan will be best.
We can provide whole set completely solution for you based on these information .

Q What about the installation?

A For all of our products ,we will provide the clearly installation manual and video ,also make description installation precautions documents ,make sure even you do not have experienced workers, you can also install the door by your own worker.
For the complex big project ,we will send our engineer to site guide for the installation.

Q Which kinds of payment you accept?

A We usually accept T/T in advance, L/C for large sum, PINGPONG, etc. If you prefer other payments terms, please feel free to contact us .

Q How long is the lead time ?

A  7-10 days for production ......


Q How about the after sale service?

A Spare parts will be delivery out within 24 hours by DHL ,UPS ,TNT and so on .

Q Can we become your agent ?

A Yes ,we are very welcome new partners ,but we have to check if there is already have partners in your local area .
